About STARTIVA
As a premier general contracting and industrial services leader based in Al Jubail, STARTIVA is dedicated to high-performance project support across the Kingdom of Saudi Arabia's construction sector. We understand the complexity of large-scale industrial projects and have built an integrated platform to meet these demands.
Specialized Fleet
PWAS

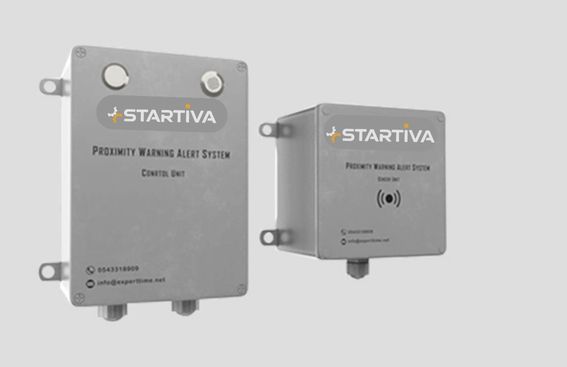

Radar PWAS 180°
Introducing our Radar PWAS 180°, a highly reliable product designed with optimized proximity sensing technology, a buzzer alert system, and an integrated data logger, ideal for enhancing industrial equipment safety operations. Startiva's Radar PWAS minimizes the risk of vehicle-to-person collisions, making it an essential choice for organizations throughout Saudi Arabia, including Jubail.
At Startiva, we specialize in manufacturing and supplying ARAMCO certified Radar PWAS solutions in Jubail and throughout Saudi Arabia. With over a decade of experience and a commitment to quality and innovation, we ensure each system meets rigorous safety standards. Partner with us for cutting-edge Radar PWAS technology that guarantees enhanced safety and efficiency in industrial settings, tailored specifically to your operational needs.
RADAR PWAS FEATURES AND TECHNICAL SPECIFICATIONS
- ● Advanced high performance, low power 32-Bit Microcontroller from Microchip forfaster processing & detect multiple objects at high speed.
- ● Latest version high sensitivity 24GHz millimeter wave radar sensor
- ● Data logger upto 20,000 logs as per ARAMCO standards
- ● Mobile application to set the equipment no., threshold distance & downloadreports via Bluetooth communication.
- ● Reset switch with power indication & highly audible 80dB Metallic Buzzer
- ● IP68 Polycarbonate robust enclosure & mountings designed to work in harsh conditions with operating temperature upto 90 degrees.
- ● Operating Voltage: 5V-30V DC
- ● Enclosure Dimensions: 125x125x60mm - Control Unit 125 x 175 x 60 mm - Sensor Unit
- ● Sensor Detection: Up to 180 degrees wide angle
- ● Sensor Operating Frequency: 23.5G-24.5GHz
- ● Sensor Detection Distance: 8m Proximity human presence detection as per ARAMCO standard
RADAR PWAS System Advantage
- ● Designed to promote site safety by protecting workers from construction equipment.
- ● Dedicated hardened systems that provide high. security assurance for sensitive tasks.
- ● Built on trusted hardware with clean source media, instrumented and monitored for full visibility It takes short loading time.
- ● Good performance in poor network conditions.
- ● Small size
- ● Continuously update
- ● Work on offline mood.
- ● Includes expedited and automated patching of security updates to ensure system security.

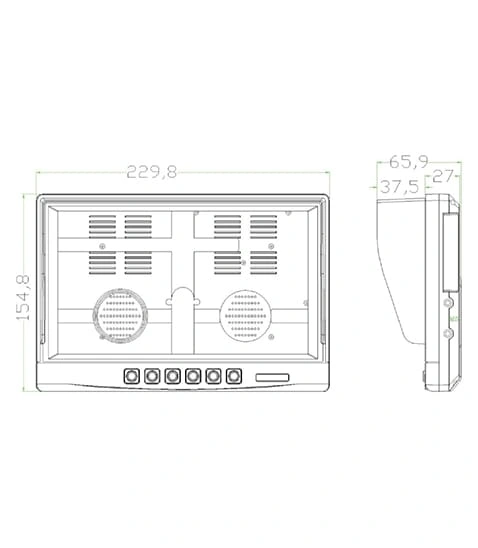

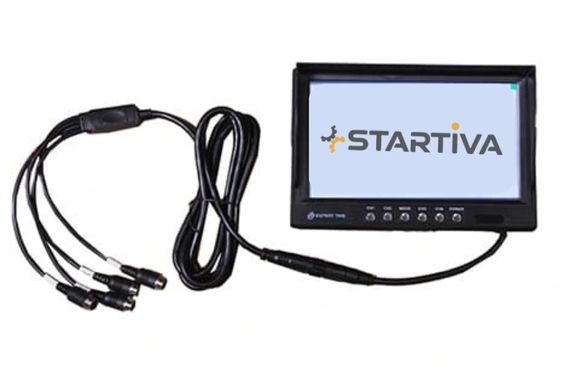

| Specification | Details |
|---|---|
| Screen | 9" digital high definition panel |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Back light | LED, Luminance: 800 cd/m2 |
| Viewing angle | ALL View |
| OSD CONTROL | Color, Brightness, Contrast, Volume, Language (English, Chinese, Spanish etc.) |
| System | NTSC & PAL (automatically) |

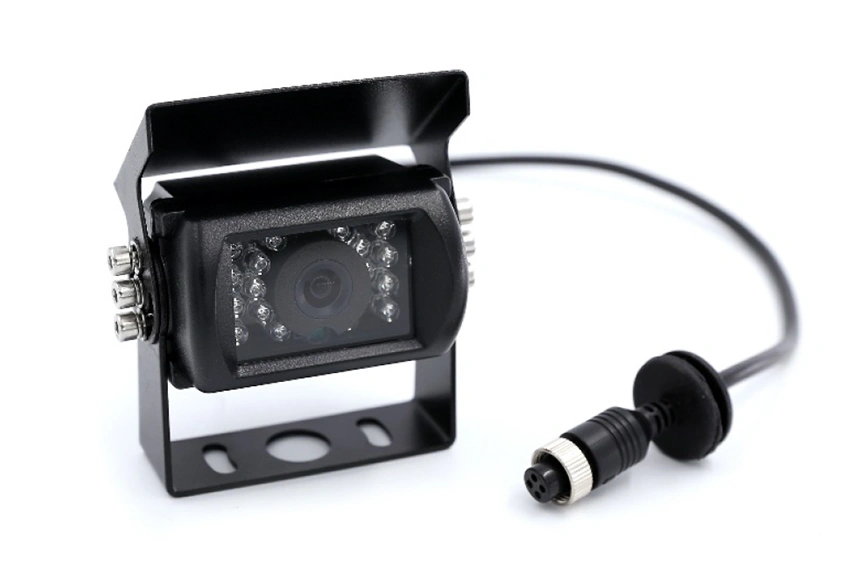

| AV input | Supports 4 HD camera inputs (1080P@30fps / 1080P@25fps / 720P@30fps / 720P@25fps), Quad-view display supported (CVBS&AHD) |
| DVR image quality | DVR recording 4 channels video signal, VGA resolution: 1920*1080, Recording speed: 60FPS, Storage format: TS |
| Memory interface | 1 SD card interface |
| Video storage | SD high-speed card, maximum support 256G |
| Remote control | Support |
| Trigger control | 3 channel trigger control |
| Shockproof level | 4G |

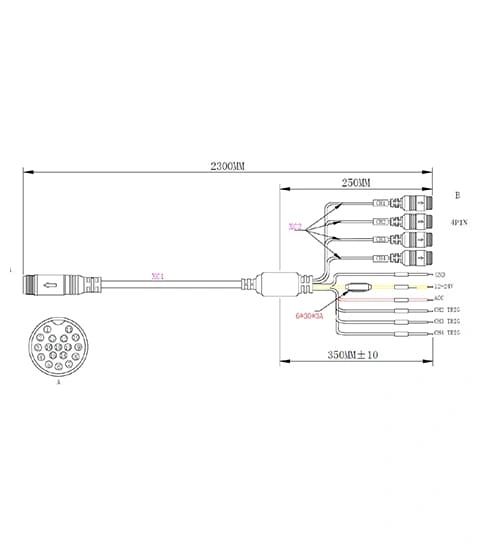

| Connector | 4PIN |
| Power supply | DC 12V-40V wide voltage power supply, support ACC ignition |
| Power consumption | <8W |
| Maximum current | <800mA |
| Working temperature | -10°C to 70°C |
| Storage temperature | -20°C to 80°C |
| Packing list | Power cable, remote control, U type bracket |
Multisensor Radar PWAS 360°
Experience unmatched security with our Multisensor Radar PWAS 360°. This advanced system provides comprehensive 360-degree coverage for early threat detection and tracking, ensuring superior situational awareness. Startiva specializes in delivering state-of-the-art PWAS solutions designed to meet Saudi Arabia's stringent safety standards. Our systems integrate optimized proximity sensing technology for reliable performance in industrial environments.
At Startiva, we combine over a decade of expertise with a commitment to innovation to offer reliable Multisensor Radar PWAS 360° systems. Whether you're in Saudi Arabia or specifically in Jubail, our solutions are engineered to deliver robust safety solutions. Trust Startiva to provide you with industry-leading PWAS technology that not only meets but exceeds your safety requirements, ensuring peace of mind in hazardous work environments.

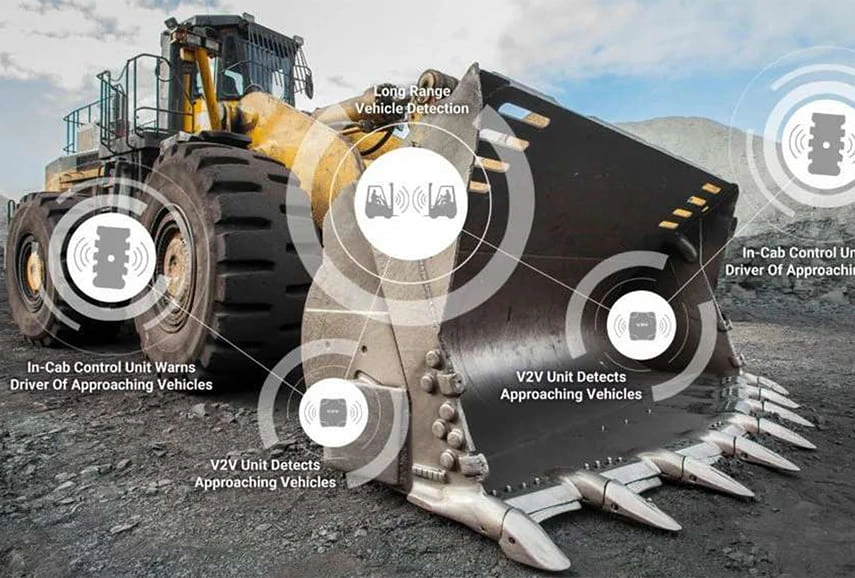

Why MultiSensor Radar System Proximity Warning Alert
As Heavy Equipments has multiple blind spots, which a basic PWAS will not be able to detect. MultiSensor Radar PWAS is designed in such a way that it detects the obstacle in the rear, left and right blind spots of the equipments providing higher safety of the workforce.
- ● High Accuracy
- ● Better Performance
- ● High Accuracy
- ● Better Performance
- ● High Accuracy
- ● Better Performance
Features and Functionalities
- ● Advanced high performance, low power 32-Bit Microcontroller from Microchip for faster processing & detect multiple objects at high speed
- ● Latest version high sensitivity 24GHz millimeter wave radar sensor
- ● Datalogger upto 20,000 logs
- ● Mobile application to set the Masking distance, Threshold distance, set Timestamp & download reports via Bluetooth communication
- ● Operating Mode, Sensor identity light indicator & highly audible 80dB Metallic Buzzer
- ● IP68 Polycarbonate robust enclosure & mountings designed to work in harsh conditions with operating temperature upto 90C
- ● Operating Voltage: 5V-24V DC
-
●
Enclosure Dimensions:
125x175x60mm (Control Unit)
80x82x56mm (Left-Sensor Unit)
80x82x56mm (Right-Sensor Unit)
80x82x56mm (Rear-Sensor Unit) - ● Sensor Detection: 120 degrees wide angle x3 directions
- ● Sensor Operating Frequency: 23.5G-24.5GHz
- ● Sensor Detection Distance: 8m Proximity human presence detection
The Benefits of Using MultiSensor Radar
Proximity Warning Systems
Multi-Directional
Multi detection of approaching workers and vehicles in multiple directions for greater awareness of potential risks.
Blind Spot Safety
Maximise safety by alerting drivers and workers of dangers around obstructions, in blind spots or poor visibility.
Legislation Compliant
Comply with safety legislation and avoid hefty fines.
Prevent Incidents
Prevent completely avoidable incidents when pedestrians are required to work in close proximity to workplace vehicles.

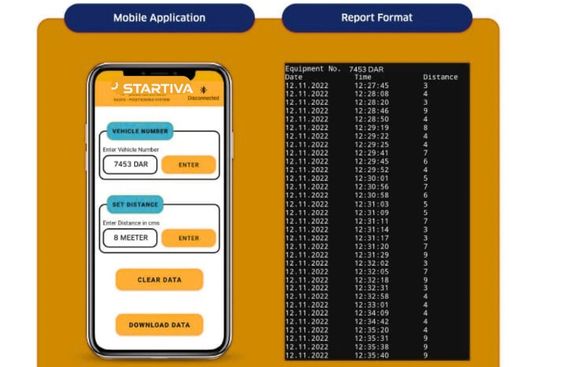

Mobile Application For Easy User Interface
As Heavy Equipments has multiple blind spots, which a basic PWAS will not be able to detect. MultiSensor PWAS is designed in such a way that it detects the obstacle in the rear, left and right blind spots of the equipments providing higher safety of the workforce.
- ● No internet required
- ● Set Masking distance
- ● Set Threshold distance
- ● Set Timestamp
- ● Download reports
.webp)
| Date | Time | Distance (m) | Position |
|---|---|---|---|
| 2023.3.9 | 22:46:01 | 1.2 | Rear |
| 2023.3.9 | 22:46:05 | 1.35 | Rear |
| 2023.3.9 | 22:46:08 | 1.05 | Right |
| 2023.3.9 | 22:46:10 | 1.05 | Rear |
| 2023.3.9 | 22:46:13 | 1.05 | Right |
| 2023.3.9 | 22:46:15 | 1.05 | Left |
| 2023.3.9 | 22:46:18 | 1.15 | Left |
| 2023.3.9 | 22:46:20 | 1.8 | Right |
| 2023.3.9 | 22:46:23 | 1.92 | Left |
| 2023.3.9 | 22:46:25 | 1.27 | Right |
| 2023.3.9 | 22:46:28 | 1.3 | Right |
| 2023.3.9 | 2023.3.9 22:46:30 | 1.85 | Left |
| 2023.3.9 | 22:46:33 | 1.25 | Left |
| 2023.3.9 | 22:46:35 | 1.85 | Rear |
